240×128 Graphic LCD

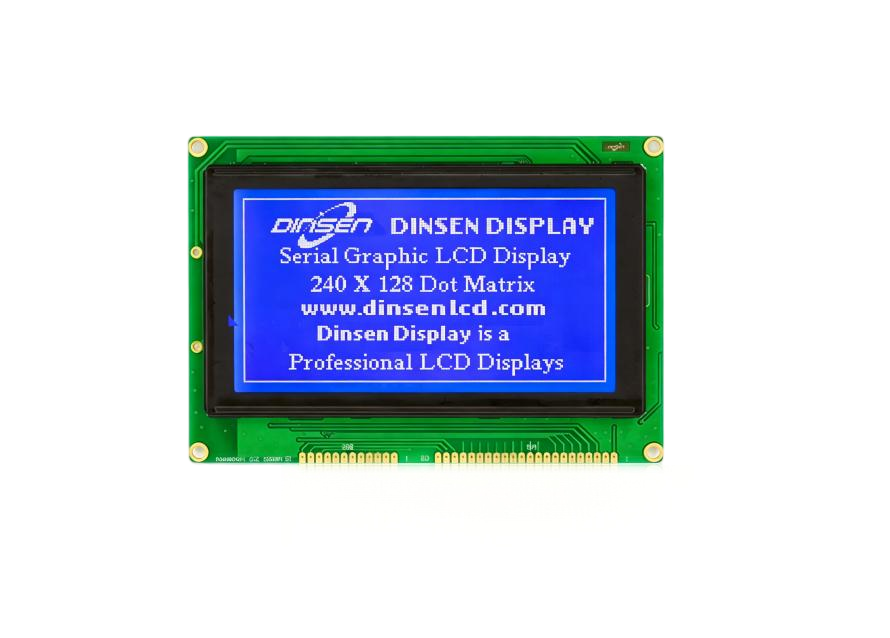

240×128 COB LCD Module | 5.1 inch Industrial LCD

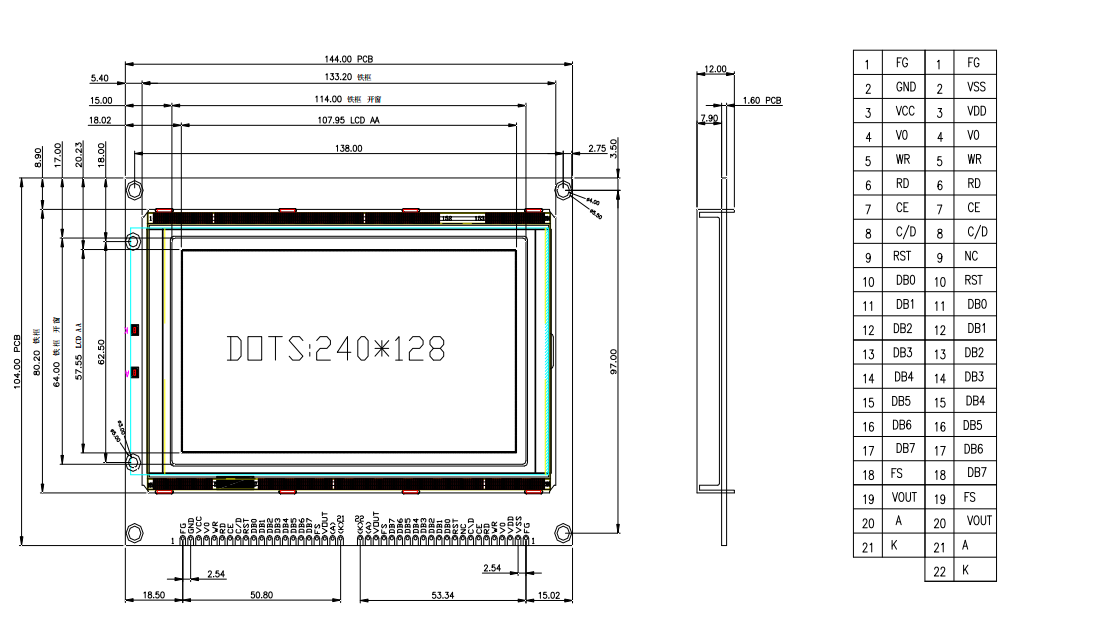

240×128 dot matrix graphic LCD module, COB (chip-on-board) packaging technology, 5.1-inch industrial-grade monochrome display, built-in RA6963/T6963C controller, supports 8-bit parallel interface, operating temperature -20℃~+70℃, widely used in industrial HMI, instrumentation, medical equipment and other fields.
The product employs a 1/128 Duty, 1/12 Bias drive system, providing an optimal viewing angle at the 6 o’clock position. The operating temperature range is -20℃ to +70℃, and the storage temperature range is -30℃ to +80℃, meeting the requirements of industrial applications. All materials comply with RoHS environmental standards.
Description
Basic Parameters
• Resolution: 240 × 128 dots
• Size: 5.1 inch
• Packaging: COB (Chip-on-Board)
• Built-in Controller: RA6963 / T6963C optional
• Interface: 8-bit parallel interface
• Operating Temperature: -20℃ ~ +70℃
• Storage Temperature: -20℃ ~ +80℃
• Drive Mode: 1/128 Duty, 1/12 Bias
• Best Viewing Angle: 6 o’clock
• Compliance: RoHS certified
FAQ
Q: Is the screen compatible to directly replace old LCD screens equipped with T6963C?
A: Yes, our 240×128 module reserves the universal pin definition of T6963C, which can be directly installed and replaced without large-scale modification of circuit and programs.
