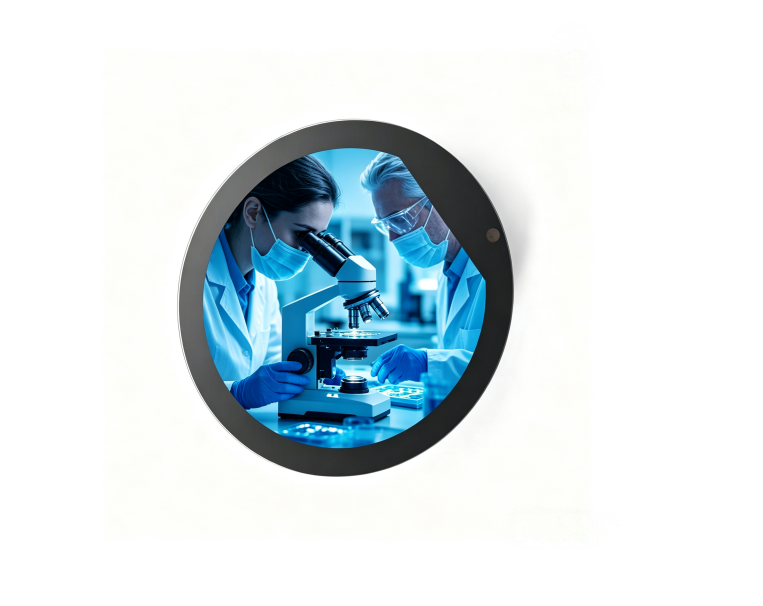

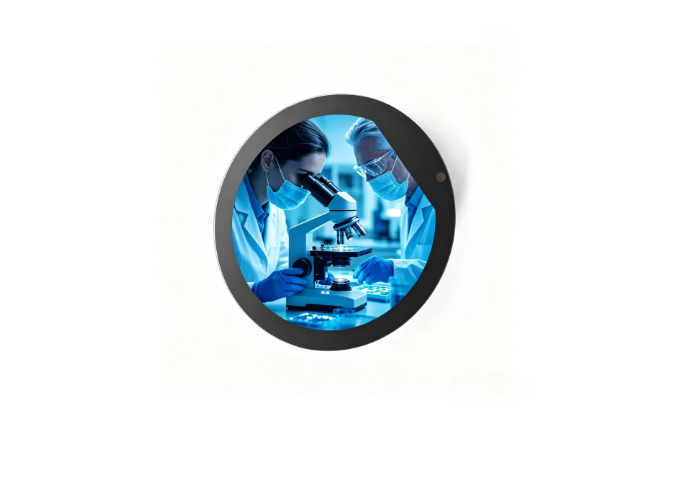

3.6 Inch IPS Round TFT LCD
3.6″ TFT LCD| 544×506 | 1000nits |Customizable CTP
This 3.6-inch circular TFT LCD display boasts a resolution of 544×506 and a brightness of up to 1000 cd/m², ensuring clear visibility even in direct sunlight, making it ideal for outdoor and high-ambient-light applications. Designed for extreme environments, it operates stably over a wide temperature range of -30°C to +85°C, making it ideal for industrial control panels and high-end outdoor terminals.
Furthermore, we offer optional resistive or capacitive touch panels, as well as options for specific needs such as anti-glare, anti-reflective, and anti-fingerprint features.
Description
Basic Parameters
• Size: 3.6 inch circular TFT
• Resolution: 544 × 506
• Panel Type: IPS full viewing angle
• Brightness: 1000 cd/㎡ high brightness
• Working Temperature: -30℃ ~ +85℃
• Touch Option: Resistive touch / Capacitive CTP touch (customizable)
• Customizable surface: AG anti-glare, AR anti-reflection, AF anti-fingerprint coating
• Feature: Round special shape, sunlight readable, industrial wide temperature
FAQ
Q: What is the difference between AR coating and AF coating for this circular screen?
A: AR anti-reflection coating greatly reduces light reflection to improve outdoor definition; AF anti-fingerprint coating repels oil and fingerprints, which is more suitable for frequent manual touch on beauty instruments and control knobs.
