Segment LCD Screen
Custom Segment LCD Display for Blood Pressure Monitor, Heart Rate LCD Screen Medical LCD Panel

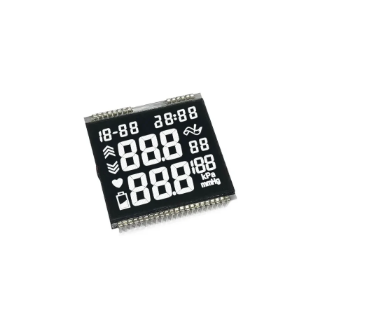

This is customized segment LCD screen specially designed for electronic blood pressure monitors, the picture is our physical sample. There is no fixed standard size, all specifications can be customized as required.
Full Customization Range
1. Outline structure: overall length, width, thickness, positioning holes, buckles and hanging ears can be designed arbitrarily;
2. Display layout: freely adjust the number of digits, icons, prompt symbols and measurement units;
3. Hardware configuration: pin definition, pin spacing, FPC soft cable, backlight color and brightness can be customized;
4. Process selection: TN / HTN / STN three mainstream LCD materials optional, various packaging processes can be matched.
Description
Core Advantages
1. Optional LCD Material Standard configuration adopts HTN liquid crystal with moderate viewing angle and high cost performance, which is widely used in conventional household medical devices; STN wide-angle liquid crystal is available for upgrading, which presents clearer images under strong ambient light.
2. Ultra-low Power Consumption
Adopt static driving mode with microamp-level power consumption, perfectly match the long-term battery-powered working mode of portable blood pressure monitors, effectively extend battery life.
3. High Stability for Medical Scenarios
Strictly control screen aging and residual image problems; good temperature resistance, stable display in daily indoor temperature range; excellent anti-interference ability, will not be disturbed by the internal circuit of medical equipment.
4. Flexible Assembly Structure
Double-side pin header design on the upper and lower edges, convenient for PCB welding; compatible with zebra conductive bar assembly, COB chip bonding and other mainstream packaging processes.
5. Clear Display Effect
High contrast design, the digital and icon outline is sharp, which is convenient for the elderly and users to read data quickly.
