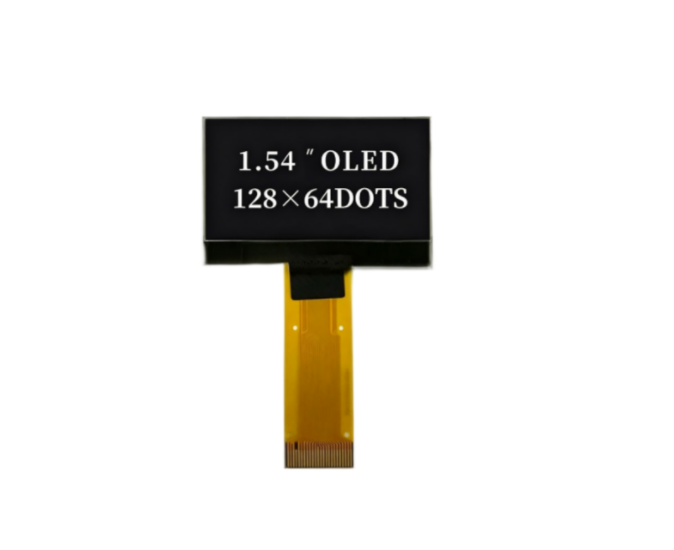

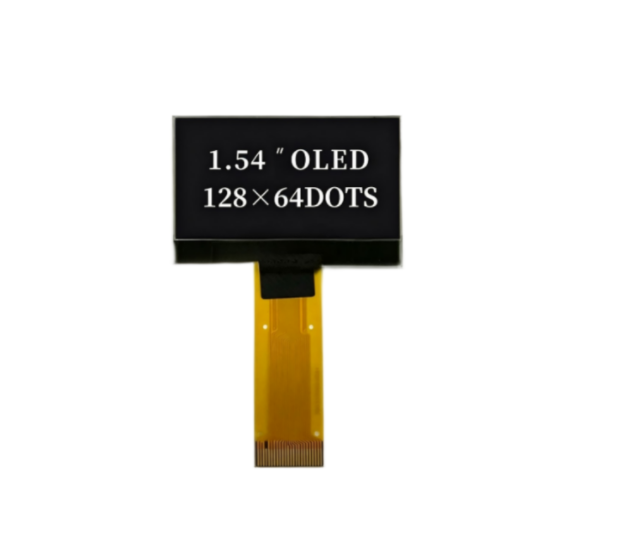

1.54 Inch OLED Display
1.54 Inch OLED Display 128×64 SSD1309|SSD1116 | SPI I2C Interface | Wide Temp PMOLED
The 1.54‑inch OLED display features 128×64 resolution and is built with the SSD1309/SSD1116 driver IC. OLED self‑emissive technology eliminates the need for a backlight, delivering 10,000:1 ultra‑high contrast, wide viewing angles (>160°), and extremely low power consumption.
Supporting 6800/8080 parallel, 4‑wire SPI, and I2C interfaces, this module is compatible with 3.3V ~ 5V systems (onboard voltage translator). With an operating temperature range of -40°C to +85°C, it is ideal for wearables, medical devices, smart home applications, and industrial controls.
Description
Basic Parameters
• Size: 1.54 inch
• Resolution: 128 × 64
• Panel Type: PMOLED monochrome self-luminous screen
• Driver IC: SSD1309 / SSD1116
• Available Interfaces: I2C, 4-wire SPI, 6800/8080 parallel port
• Working Voltage: 3.3V ~ 5V (built-in voltage conversion chip)
• Contrast Ratio: 10000:1
• Viewing Angle: ＞160°
• Operating Temperature: -40℃ ~ +85℃
• Core feature: No backlight, ultra-low power consumption
FAQ
Q: How to avoid OLED burn-in if the equipment stays on static icons for a long time?
A: You can add simple screen refresh timing or screen sleep function in the program; our wide-temperature OLED has anti-burn optimization, intermittent static display will not have obvious burn marks.
