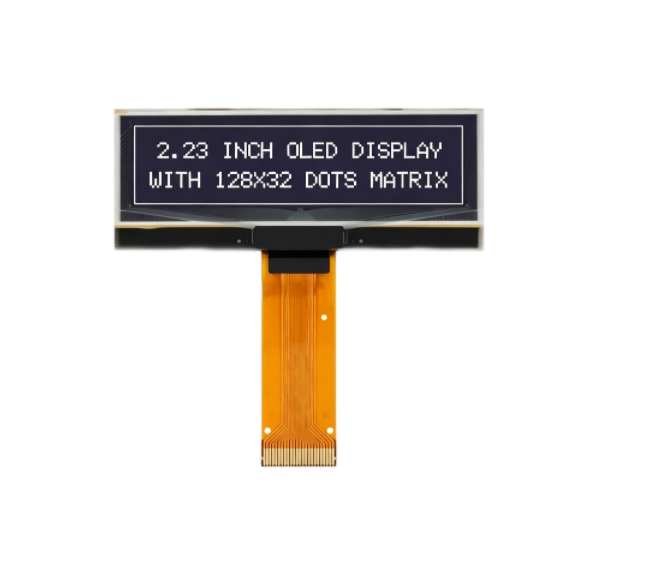

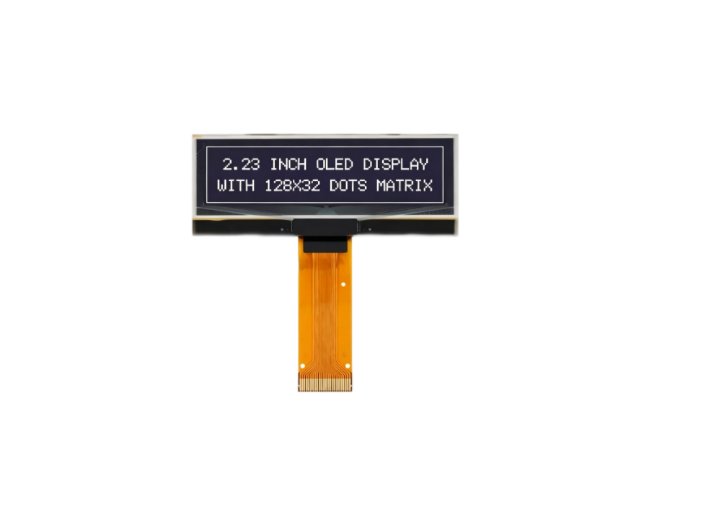

2.23 Inch OLED Display
2.23 Inch OLED Display Module| 128×32 Resolution| SSD1305| SSD1116 Driver
The 2.23-inch OLED display features 128×32 resolution and SSD1305/SSD1116 driver IC, delivering sharp monochrome graphics on a true black background. As a self-emissive PMOLED display, it requires no backlight, offering exceptional contrast and wide viewing angles in a compact form factor. Supporting I2C, SPI, and 8-bit parallel interfaces, it integrates seamlessly with Arduino, Raspberry Pi, STM32, and other 3.3V~5V systems.
With an ultra-wide operating temperature range of -40℃ to 85℃, this display is ideal for industrial equipment, medical devices, smart home products, and embedded projects requiring reliable visual output.
Description
Basic Parameters
✅ 2.23” PMOLED 128×32 monochrome screen, self-luminous no backlight
✅ SSD1305 / SSD1116 universal drive IC, convenient program development
✅ I2C/SPI/parallel multi-interface, compatible with STM32/Arduino/Raspberry Pi
✅ -40℃~85℃ ultra-wide temperature, adapt to harsh environment
✅ Low power consumption, ultra-thin compact size
✅ Custom FPC, luminous color and structural size available
FAO
Q: Can the screen work normally outdoors at minus 30 degrees Celsius?
A: This OLED module supports -40℃~+85℃ wide temperature range, it will not flicker or fail to light up under -30℃ low temperature, meeting long-term outdoor industrial use requirements.
Q: Does this OLED screen need extra backlight power supply?
A: It is self-emissive PMOLED, no backlight is needed, only simple power supply for the main chip, with lower power consumption than ordinary LCD screens.
