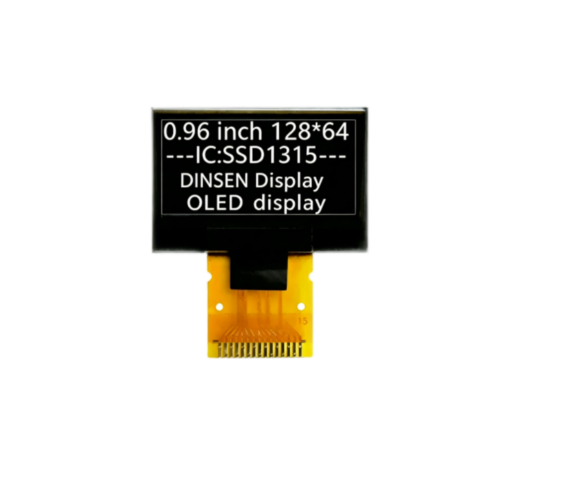

0.96 Inch OLED Display

0.96″ OLED Display | SSD1315 Driver | 128×64 Resolution | I2C/SPI Interface

The 0.96″ OLED display powered by SSD1315 driver delivers sharp 128×64 resolution with self-emissive technology. No backlight needed – it offers true black, high contrast, and ultra-low power consumption in an ultra-thin package (as slim as 1.26mm). Supports I2C and SPI interfaces, compatible with 3.3V~5V systems. Ideal for wearables, medical devices, smart home controls, and DIY projects.

Description
Reviews (0)

Description

✅ 0.96-inch OLED with 128*64 resolution, universal SSD1315 driver
✅ PCB module & bare screen two versions optional
✅ I2C+SPI dual interfaces, compatible with 3.3V/5V power supply
✅ High contrast ratio, visible under strong sunlight, full viewing angle
✅ Low power consumption, compatible with STM32, Arduino and most MCUs

FAQ

Q1: Which one sells better, PCB integrated module or bare screen?
A: The PCB integrated module has far larger market demand and shipment volume. Most manufacturers, developers and small-batch projects choose the PCB version for convenient assembly without secondary circuit design. The bare screen is less commonly used, only adopted by projects with strict space limits and deep customization needs.

Q2: Can the two versions share the same driver code?
A: Yes. Both versions adopt SSD1315 driver IC with identical resolution and pin logic. No code modification is needed; only installation and soldering methods differ.

Q3: Is the display legible under direct sunlight?
A: The contrast ratio exceeds 10000:1. With pure black background, texts and patterns remain distinguishable under ordinary direct outdoor sunlight.

Q4: Which main controllers can this OLED screen match?
A: It is compatible with STM32, Arduino, 51 MCU, Raspberry Pi and most mainstream microcontrollers. Complete open-source resources are offered for easy debugging.
