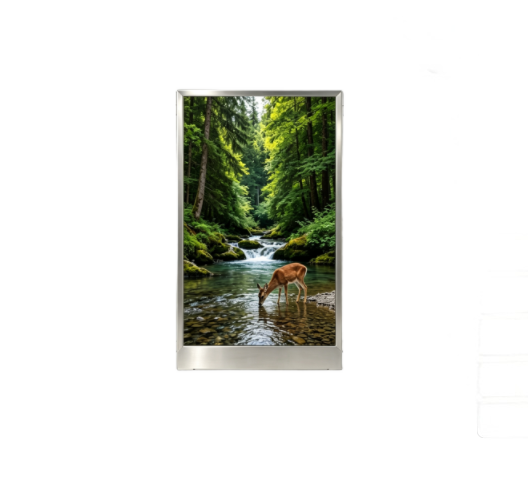

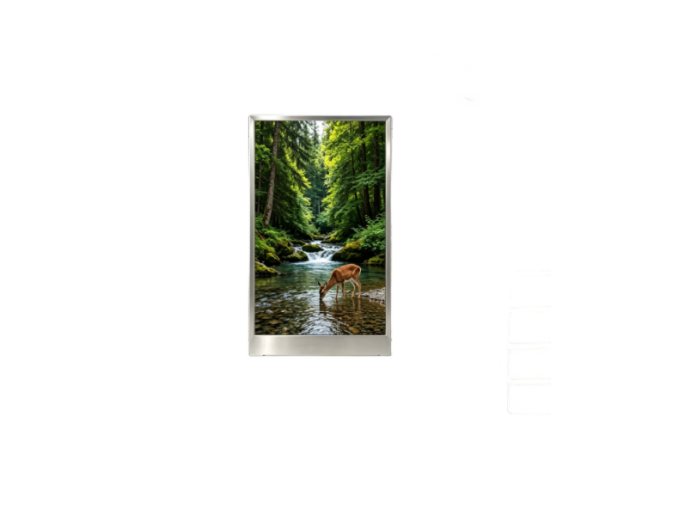

1.77 Inch TFT LCD Display
128×160 Resolution | MCU/SPI Interface | ST7735S Driver | Industrial Grade -20℃~70℃
The 1.77-inch TFT LCD display features 128×160 resolution and is built with the ST7735S driver IC, delivering vivid full-color graphics in an ultra-compact form factor. Supporting SPI (3-wire/4-wire) and MCU interfaces, this display integrates seamlessly with Arduino, Raspberry Pi, STM32, ESP32, and other 3.3V/5V platforms.
With 500 nits brightness, 500:1 contrast ratio, and an operating temperature range of -20°C to +70°C, it is ideal for handheld devices, smart home controls, medical instruments, and DIY projects.
Description
Basic Parameters
✔ 1.77-inch 128*160 TFT panel with mature ST7735S driver IC
✔ 500nits high brightness & 500:1 contrast for clear visual experience
✔ Dual SPI & MCU interfaces, widely compatible with mainstream MCU
✔ Industrial wide temperature range -20℃~+70℃, stable anti-interference performance
✔ Mini size specially designed for compact handheld devices
✔ Ready stock & personalized customization are both available
FAQ
Q: Does this display support 3-wire SPI and 4-wire SPI? Can it be directly connected to ESP32 and STM32?
A: It supports 3-wire SPI, 4-wire SPI and MCU parallel interface, compatible with 3.3V & 5V voltage levels. Abundant open-source driver codes are available online, and it can be directly matched with mainstream controllers including ESP32, STM32, Arduino and Raspberry Pi without extra circuit modification.
Q: Will the screen go black or flicker under -20℃ low temperature?
A: This is an industrial wide-temperature display. It can work stably between -20℃ and +70℃ with stable pictures without black screen or flicker, suitable for long-term operation of outdoor miniature equipment and low-temperature instruments.
