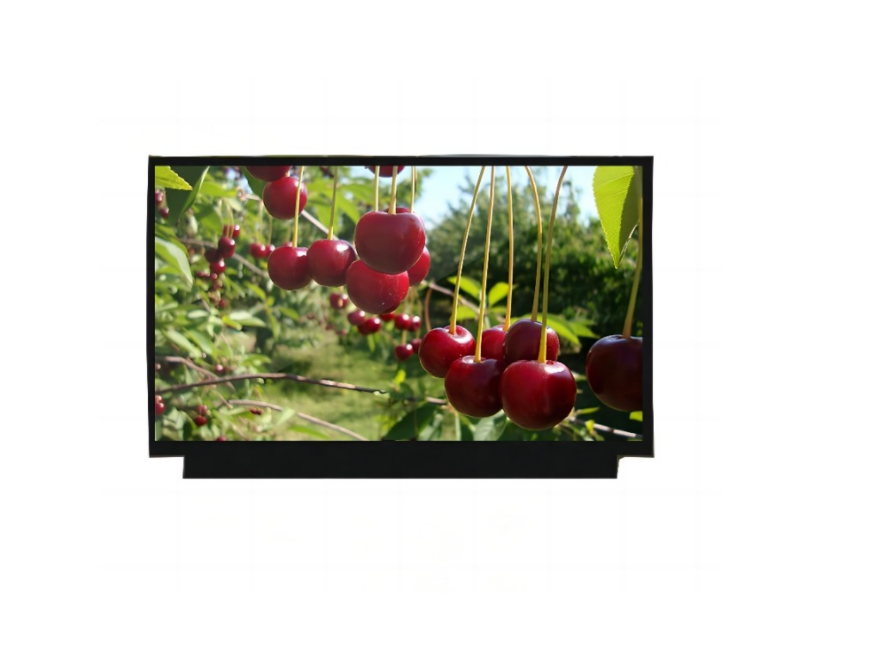

15.6 Inch EPD TFT LCD
15.6 Inch TFT LCD Module | 1920*1080 FHD | IPS Wide Angle | LVDS/eDP Interface | Custom Touchscreen
This industrial-grade 15.6-inch TFT LCD display module is a high-performance visual solution with outstanding stability and compatibility. It features a FHD 1920×1080 resolution with a 16:9 standard aspect ratio, delivering 16.7 million vibrant colors and crisp, clear imaging for exceptional visual performance.
It supports mainstream signal interfaces including LVDS/eDP, with a wide operating temperature range of -20℃ to +70℃, and the LED backlight boasts a service life of over 50,000 hours, featuring low power consumption and long-term durability. We provide customized services such as custom cover glass, optical full lamination, capacitive touch panel integration, and strict finished product testing to ensure stable product performance.
Description
Basic Parameters
• Screen Size: 15.6 inches
• Resolution: 1920 × 1080 (FHD 1080P)
• Aspect Ratio: 16:9
• Panel Type: IPS full viewing angle
• Optional Interfaces: LVDS, eDP
• Backlight Service Life: ≥50000 hours
• Operating Temperature: -20℃ ~ +70℃
• Optional configuration: Custom CTP capacitive touch / RTP resistive touch
FAQ
Q: What are the differences between LVDS and eDP interfaces, which one is more suitable for industrial equipment?
A: LVDS has stronger anti-interference ability, longer transmission distance, more suitable for cabinet-type industrial equipment; eDP is thinner in wiring, more compact, mostly used for embedded integrated small industrial all-in-one equipment, you can choose according to your motherboard interface.
