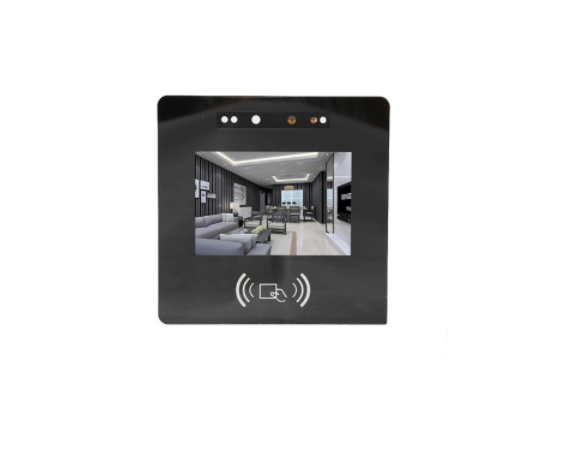

3.5 Inch TFT LCD with CTP

3.5-Inch TFT LCD with Custom Cover Glass | 320×480 | with Silkscreen

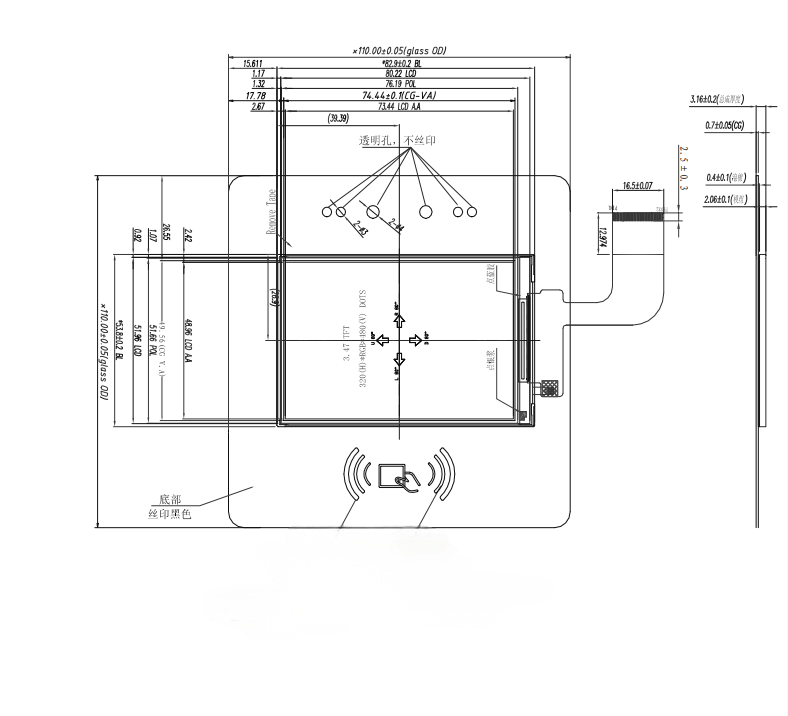

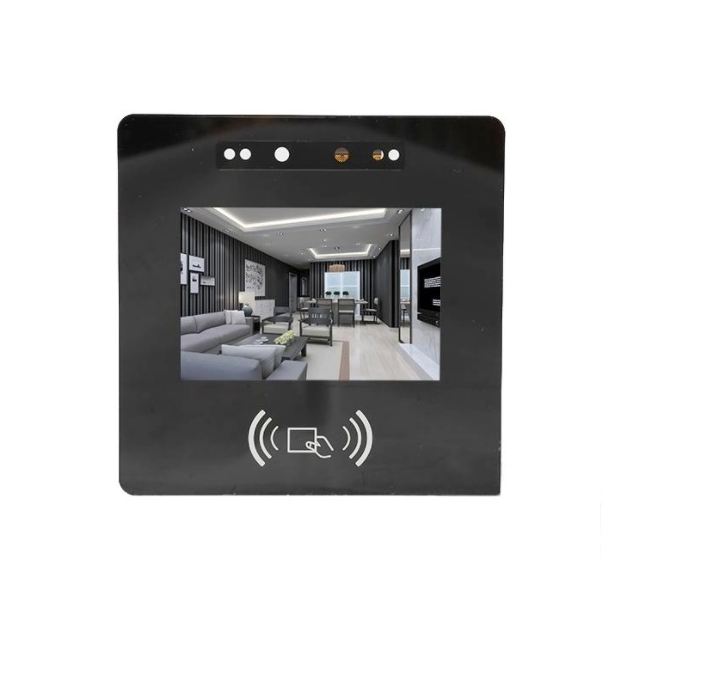

This 3.5-inch TFT LCD module is paired with a fully customized cover glass designed to your exact specifications. The cover glass features black silkscreen on the bottom area, creating a clean, branded look while hiding non-display areas. A 1.32mm transparent window (no silkscreen) allows for light sensor, camera, or indicator LED placement.

This solution is pre-assembled and ready to mount into your enclosure — eliminating the need for separate cover glass sourcing and assembly.

Description
Reviews (0)

Description

✅ 3.5″ IPS TFT‑LCD Module, 320×480 resolution, 262K full‑color, ultra‑wide viewing angle
✅ Built‑in capacitive CTP touch panel, responsive multi‑point touch, anti‑interference performance
✅ SPI communication interface, ILI9488 driver IC, easy debugging for embedded projects
✅ Compact and thin form factor, accurate outline dimension, simple for housing assembly
✅ Industrial‑grade temperature range ‑20℃~+70℃, stable performance for long‑time operation
✅ Support brightness upgrade, cover glass, full lamination and customized FPC pin assignment
✅ Fast sample service, sufficient inventory and flexible bulk‑order customization

FAO

Q1: Can the pattern and hole position on the cover glass of this 3.5-inch touch screen be redesigned?
A: Yes, we fully support custom silkscreen graphics, window size and hole layout according to your structural drawings.

Q2: Is this module completely bonded well, will there be separation during equipment use?
A: All finished modules are laminated with professional industrial optical glue, stable bonding, no layering in normal long-term use.

Q3: What equipment is this integrated 3.5-inch CTP screen most suitable for?
A: It is specially developed for access control face recognition equipment, smart wall switches and small industrial touch control panels.
