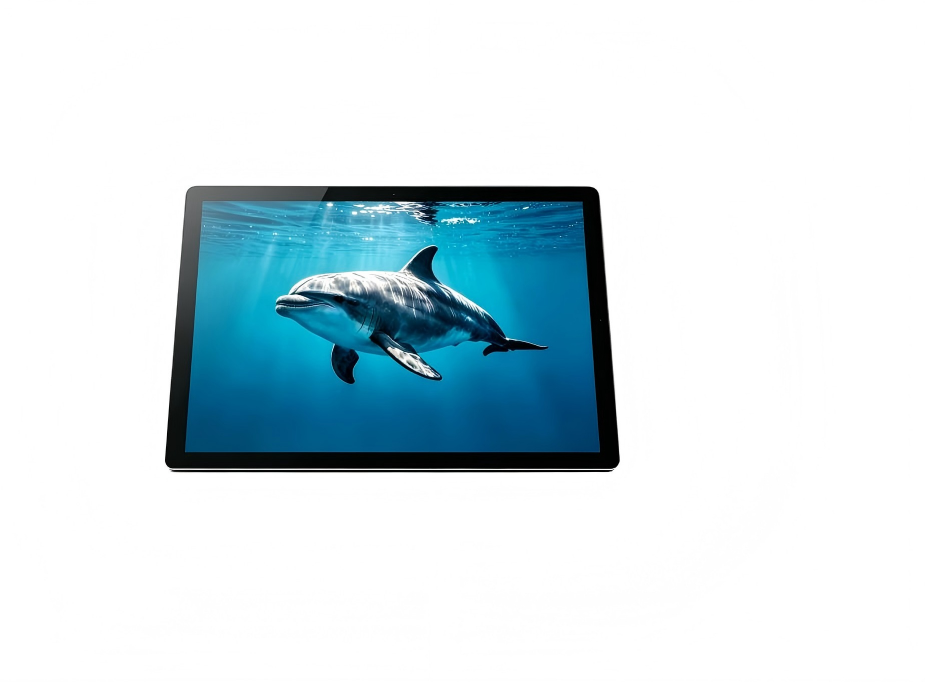

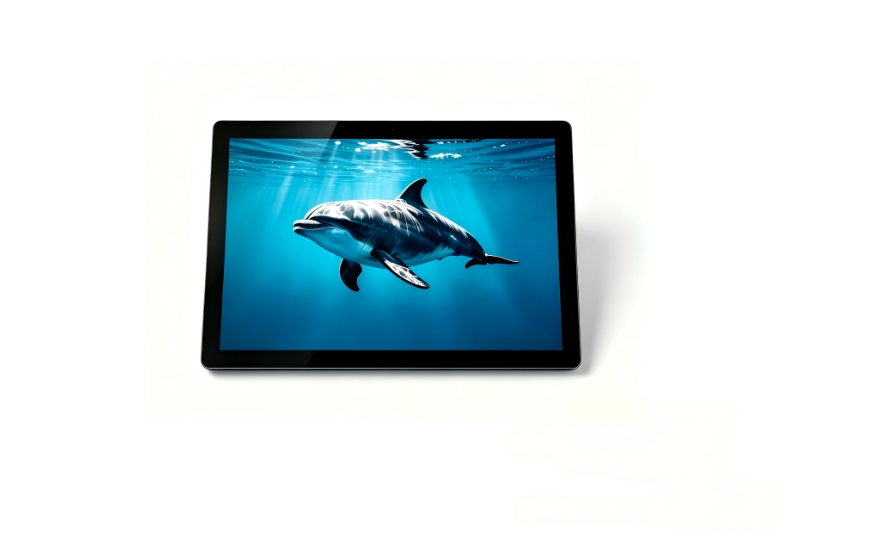

8 Inch IPS TFT LCD

8.0 Inch TFT LCD Module | 1024×768 XGA | 4:3 Aspect Ratio | IPS Wide View | LVDS Interface | Custom Touch & Cover Glass

This 8.0-inch TFT LCD display module features a 1024×768 XGA resolution. Its rugged design supports a customizable brightness range (300–2000 cd/㎡) and a wide operating temperature range (-20℃ to +70℃), making it suitable for indoor and harsh industrial environments. An LVDS interface ensures stable signal transmission, while the LED backlight boasts a lifespan exceeding 50,000 hours, meeting long-term usage requirements.

We offer comprehensive customization services, including cover glass bonding, optical bonding, capacitive touch integration, and custom FPC designs (custom flexible circuit boards for both display and touch to your specifications). This module is ideal for industrial control panels, medical devices, POS terminals, self-service terminals, and smart home devices.

Description
Reviews (0)

Description

✅ 8-inch IPS 1024×768 4:3 industrial LCD, full viewing angle without color cast
✅ 300~2000cd/㎡ freely adjustable brightness
✅ LVDS anti-interference interface, stable signal transmission
✅ -20℃~+70℃ wide temperature, backlight lifespan ≥50000 hours
✅ Support touch, cover glass, optical bonding personalized customization
✅ Widely used in industry, medical treatment, commercial self-service terminals

FAQ

Q1: What is the adjustable brightness range of this 8-inch IPS industrial screen?
A: The brightness can be customized from 300 cd/㎡ to 2000 cd/㎡ according to your usage environment.

Q2: Can this 1024*768 LVDS screen work normally in low-temperature industrial environment?
A: Yes, its standard working temperature range is -20℃~+70℃, stable display under conventional low temperature industrial conditions.

Q3: Can we bond capacitive touch panel on this 8-inch TFT LCD module?
A: Capacitive touch integration, optical bonding and cover glass customization are all available on request.
