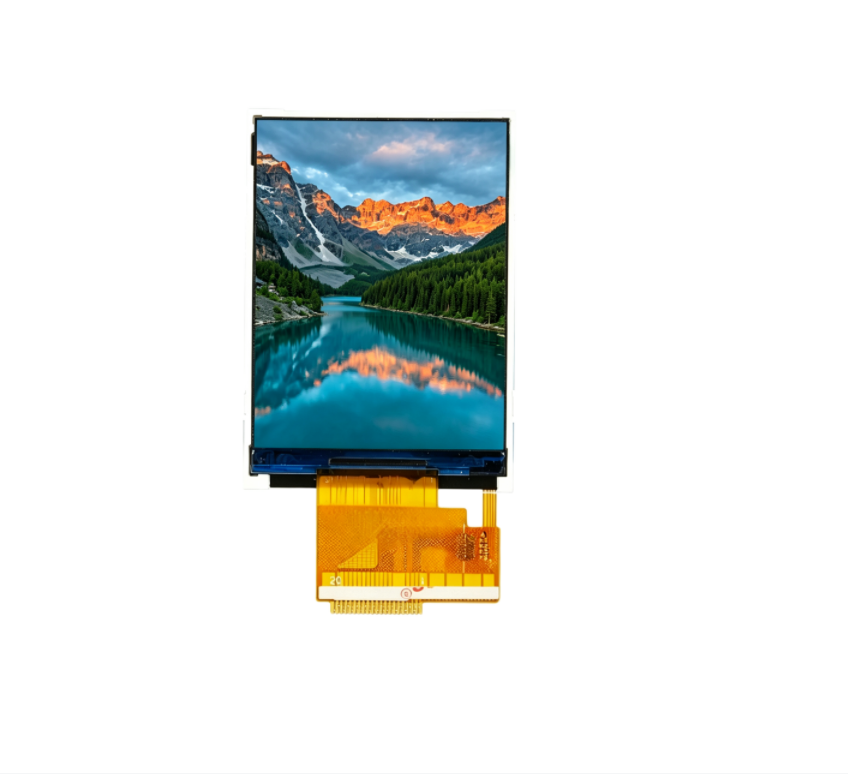

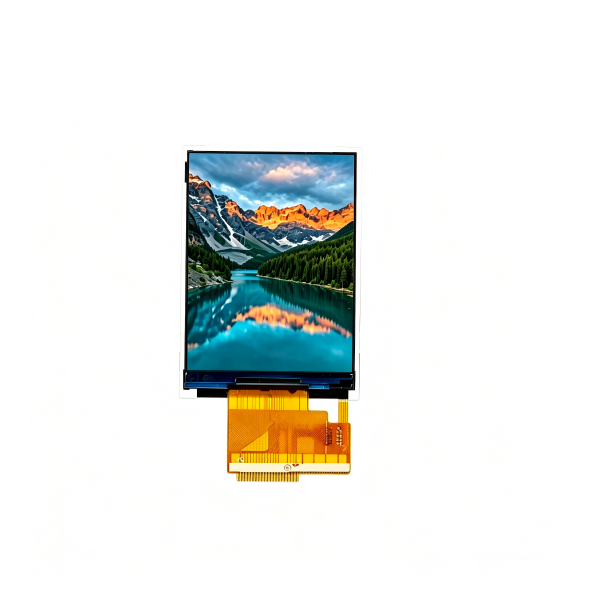

2.4 Inch TFT LCD Display
2.4-Inch TFT LCD Display Module | 240×320 | SPI/MCU Interface
The 2.4-inch TFT LCD display module is a compact, full-color solution for embedded systems and portable devices. With 240×320 pixel resolution and 262K colors, it delivers crisp graphics, text, and icons for user interfaces.
Optional resistive or capacitive touch panel adds interactive capability. The display operates from -20°C to +70°C and is available with a standard 250 nits brightness .
Description
✅ 2.4″ TFT 240*320, 262K vivid full color
✅ SPI & MCU dual optional interfaces, strong MCU compatibility
✅ Standard precise size, stable thin structure for embedded installation
✅ -20℃~+70℃ wide temperature, industrial stable performance
✅ Optional resistive/capacitive touch panel
✅ Stock supply & personalized customization supported
FAQ
Q1: Which microcontrollers can this TFT screen support?
A: It is widely compatible with STM32, Arduino, Raspberry Pi, 51 MCU and most mainstream embedded chips.
Q2: Can the brightness be increased for outdoor use?
A: Yes, we can customize high-brightness versions for outdoor scenes.
Q3: Is touch screen necessary?
A: Touch panel is optional, you can choose non-touch, resistive touch or capacitive touch according to your equipment needs.
