128×64 Graphic LCD

128×64 COB Monochrome Display |STN/FSTN Display | Industrial Grade -20℃~+70℃

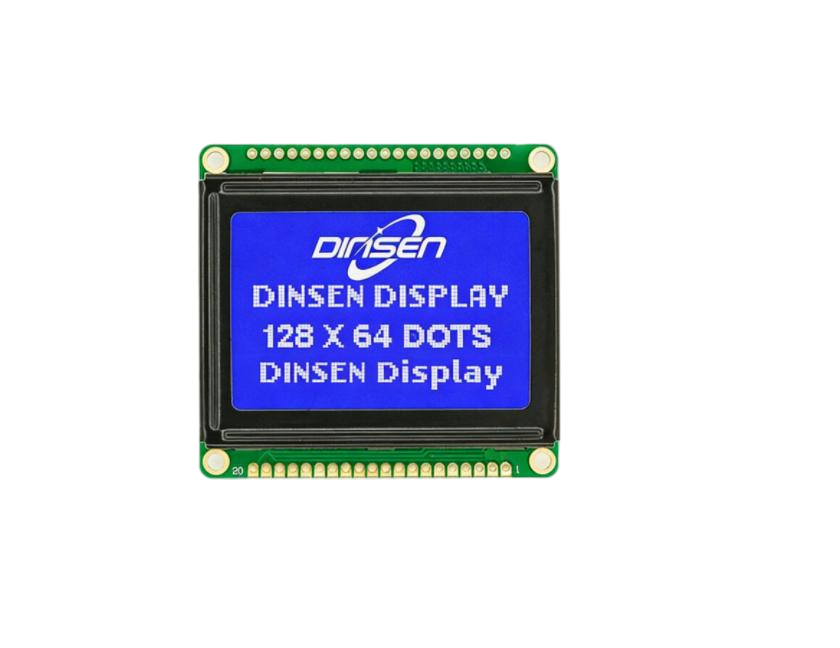

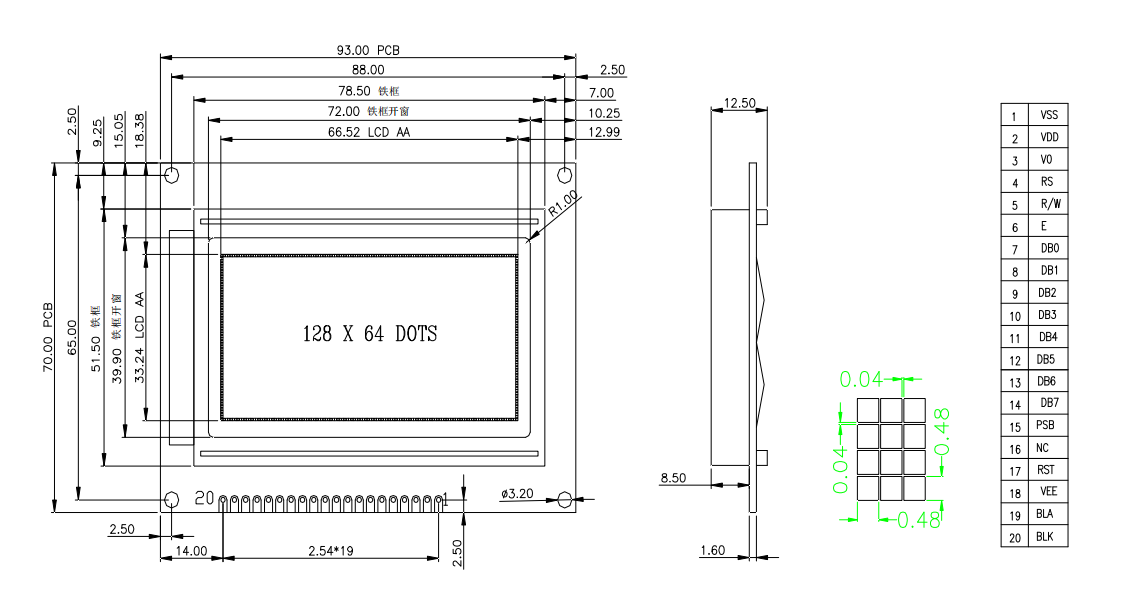

The 128×64 graphic dot-matrix LCD module uses COB (Chip-on-Board) packaging technology, has a resolution of 128×64 pixels, and dimensions of 93.0×70.0mm, with an effective display area of 66.52×33.24mm. It represents a classic specification in the industrial instrumentation field.

The module integrates a graphics controller, offering multiple drive options to meet diverse application needs. It supports an 8-bit parallel interface and an SPI serial interface (depending on the specific solution), operates at a temperature of -20℃ to +70℃, and features LED backlighting with options for yellow-green, white, blue, and red colors. It uses a standard 20-pin single-row interface (2.54mm pitch) and is powered by 5.0V (3.3V optional).

Description
Reviews (0)

Description

Basic Parameters

• Resolution: 128 × 64 dots

• Packaging: COB (Chip-on-Board)

• Panel Type: STN / FSTN

• Working Temperature: -20℃ ~ +70℃ industrial grade

• Interfaces: 8-bit parallel / SPI serial port optional

• Pin definition: Standard 20Pin single row, 2.54mm pitch

• Voltage: 5V standard, 3.3V optional

• Backlight: Yellow-green / white / blue / red customizable

FAQ

Q: What are the advantages of FSTN version compared with ordinary STN?
A: FSTN has wider viewing angle and clearer screen display, suitable for equipment requiring multi-angle viewing; conventional STN is more cost-effective for ordinary indoor use.
