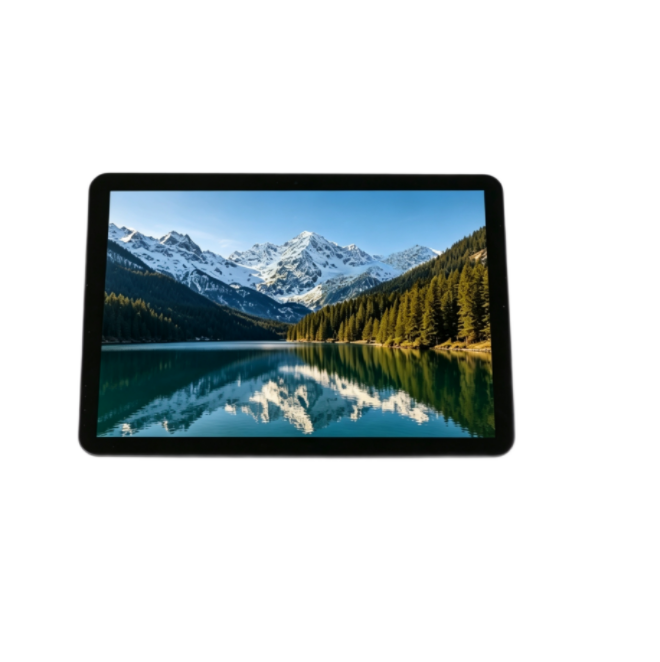

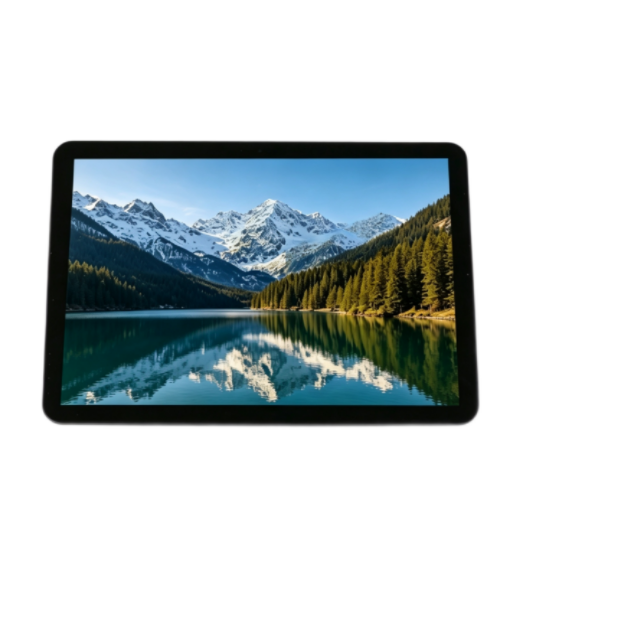

10.1 Inch Industrial TFT LCD

1280×800 LVDS Interface | 1000nits High Brightness | IPS Full View | Capacitive Touch

The 10.1-inch TFT LCD display offers 1280×800 (WXGA) resolution and IPS (In‑Plane Switching) technology, delivering vivid colors, high contrast, and 178° ultra‑wide viewing angles. With a 16:10 aspect ratio, this display is ideal for industrial HMIs, medical monitors, automotive infotainment, and consumer tablets.

The LVDS interface ensures high‑speed data transmission and low EMI. Optional capacitive touch panel (PCAP) with multi‑touch support provides a complete turnkey solution. Operating temperature ranges from -20°C to +70°C, making it suitable for demanding environments.
